What is
CAP BALANCER?
No more heavy lids!
CAP BALANCER
This product is Spring-assisted hinge for opening and closing heavy or large lids of pressure vessels, reaction kilns, stirring tanks, and various tanks lightly and safely.
Cap balancers are spring-assisted hinges that can safely and lightly open and close heavy lids such as reaction vessels, agitation tank manholes, and filter housing covers.
To meet the increasingly sophisticated safety requirements of manufacturing sites in recent years, we also offer a free-stop type that can hold the lid stationary at any angle and a type that can be attached to large lids weighing 100 kg or more.
It be mounted on a variety of equipment.
It can be easily mounted to the equipment in use, and the desired lightness can be achieved by adjusting the torque.
With a track record of more than 20 years since its release, it has been used in many plant facilities in Japan and abroad for chemical, pharmaceutical, food, and other industries.
3 improvements achieved with CAP BALANCER!
-
POINT 01
Easy to open and close
When a cap balancer is attached to a heavy lid, it becomes surprisingly light and can be opened and closed easily.
-
POINT 02
Improved safety
It eliminates the risk of fingers getting caught in heavy lids or falling on poor footholds.
-
POINT 03
Improved operational efficiency
Lids and covers can be opened and closed quickly and smoothly, improving time efficiency.
So much lighter! Savior of heavy lids

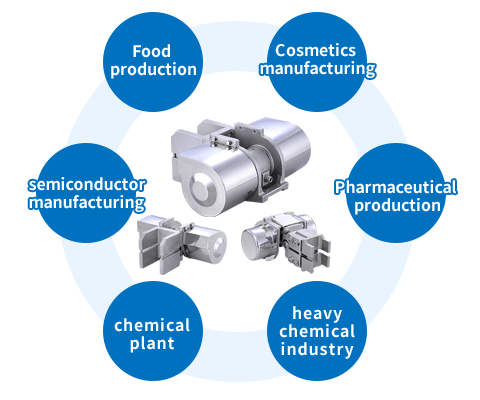

Features of KANTEC Products
-
Extensive lineup
Our extensive product lineup is adaptable to various types of lids, making it possible to introduce the product to equipment in a variety of fields.
-
Full range of options
To meet a variety of situations and requirements, CAP BALANCER is available with a wide range of options.
-
Easy maintenance
cap balancer is easy to Disassembly and assembly .it is possible to replace only the springs.
cap balancer has a structure that places the spring on both sides of the hinge, which makes it relatively easy to replace the spring or change the model.
In addition, CAP BALANCER waterproof type and free stop type can be washed in water, so it can be used in special environments where frequent cleaning is required
Products
-
CAP BALANCER
Spring Assisted TypeIt can open and close even heavy lids lightly and safely by spring force. It assists opening and closing of heavy lids and covers. It can
open and close
even a heavy lid
easily by assisting
the torque of the
lid with the torque
of the spring.
-
CAP BALANCER
Free Stop TypeCompared with Spring Assisted Type, Free Stop Type has the following features.
Features of
Free Stop Type- It can hold the lid stationary over a wide range of openinng angles.
- It has enhanced lateral strength, to reduce lateral misalignment.
- It is waterproofed inside the spring case.
*If the center of gravity of the lid is high, the range of angles at which the lid is stationary may be smaller.
*For free stop type, calculate the torque of the lid more accurately.When the torque of the lid is matched with the torque of the spring, the heavy lid can be restrained at any angle.
Case Studies
CAP BALANCER Spring Assisted Type
(waterproof type)
When the waterproof type is used, even when the entire agitator is cleaned, "it was efficient because the entire facility can be washed with each CAP BALANCER." This is the impression we received from the customer.
With the waterproof type, there is no problem even if the entire equipment is washed with CAP BALANCER.
CAP BALANCER Spring Assisted Type
(waterproof type)
Since Free Stop Type lid stops at any angle, we received a message from a customer saying, "Even female employees can easily open and close the heavy lid. "In addition, all of Free Stop Type is waterproof, so there is no need to worry about the grease used in CAP BALANCER getting mixed in.
CAP BALANCER Spring Assisted Type
(waterproof type)
When opening and closing a lid weighing more than 100 kg, you can easily open and close it with one hand by using CAP BALANCER. We have heard from customers that "Even a lid over 100 kg can be handled safely by one person." The feature of CAP BALANCER is that it can handle various lids.
CAP BALANCER Spring Assisted Type
(waterproof type)
Cosmetic manufacturers who open and close the tank lid many times, and open and close the tank dozens of times a day, are also satisfied with the "Can be used stably even when used for a long time and at high frequency." and CAP BALANCER's high durability. In addition, the spring can be easily replaced, so it can be used for a longer period of time.
CAP BALANCER Spring Assisted Type
(waterproof type)
CAP BALANCER is used to open and close the filter housing lid. The waterproof type of CAP BALANCER is also used in clean rooms because the contents of the body are completely sealed.
Development, Engineering & Design
BACKGROUND
To solve problems
in opening and
closing heavy lids
Many manufacturers have produced spring-assisted hinges for lightly opening and closing heavy lids.
Among them, hinges using torsion coil springs can be relatively compact and can be installed in equipment with limited installation space.
The cap balancer was developed as a torsion coil spring type hinge that can handle a wide range of torques from small to large and is easy to maintain, including spring replacement.
The weak points of the torsion coil spring type were the phenomenon of the cap lifting up when the cap is closed and the inability to hold the cap still at an arbitrary angle. However, the free stop type has solved these problems.
Product design
based on long-term
experience and know-how
Our product designs are based on our long-term track record and expertise in torsion coil springs, taking into account their characteristics and constraints.
Main Features.
- A spring adjustment mechanism is implemented for stepless and safe spring adjustment.
- A parallel adjustment mechanism is implemented for pressure vessel sealing and lid posture stability.
- The seal type product is IP67 level dustproof and waterproof.
- A link mechanism is implemented to match the torque of the lid and the spring with high accuracy. (Free stop type)
Integrated development
from product planning
to design
We plan, develop, and design cap balancers entirely in-house.
Springs are made by proven domestic manufacturers, and product assembly, adjustment, and inspection are performed in-house.
Thorough quality control
based on our corporate
philosophy
We have a quality policy and a quality control plan based on this policy to control the quality of all our products.
- Quality policy
- (1) We improve quality through technological development.
- (2) We provide products that meet customer satisfaction and social demands.
- (3) We continuously improve our products and related services.
- Quality assurance system
- (1) With the president in charge, the manufacturing and sales staff will work to maintain and improve product quality.
